Wooden Camera Adds Sony FX2 Modular Cage Systems

Wooden Camera has expanded its accessory lineup for the Sony FX2, introducing a modular cage system designed to add protection, mounting flexibility, and workflow versatility.

Wooden Camera's new cage system for the Sony FX2 has been designed to give you plenty of mounting and accessory options without compromising size. It’s designed for pretty much everything, from handheld and gimbals to full studio builds.

Modular Design

A modular design results in half-to-full cage design which scales to your needs with industry-standard mounting points.

Cage L-Bracket

Half cage design gives you a solid foundation for adding accessories. With mounting points to add a Top Plate or Cage Grip, you can customize this cage to the needs of
your shoot. Features include a cutout for the HDMI cable and a clamp for added security. It also supports the full range of motion of the FX2 pivoting EVF.

Top Plate

• Adds 4x 1/4”-20 and 1x 3/8”-16 mounting points
• Forward-facing 1/4”-20 mounting points for
  accessories like Bolt-On Rods
• Securely attaches to the top of the camera
• Can be used as a standalone accessory
• Compatible with a wide array of Wooden
  Camera Handles

Cage Grip

This adds 2x 1/4”-20 and 1x 3/8”-16 mounting points to the side of the camera. It securely connects to the Cage for FX2 as well as the body of the camera, and is designed with cut-out for access to the Battery Port.

20mm ARCA Riser

The ARCA Riser can be mounted perpendicular to the bottom of the cage for traditional cinema builds or parallel to the cage for photography setups.

From Half Cage to Elite

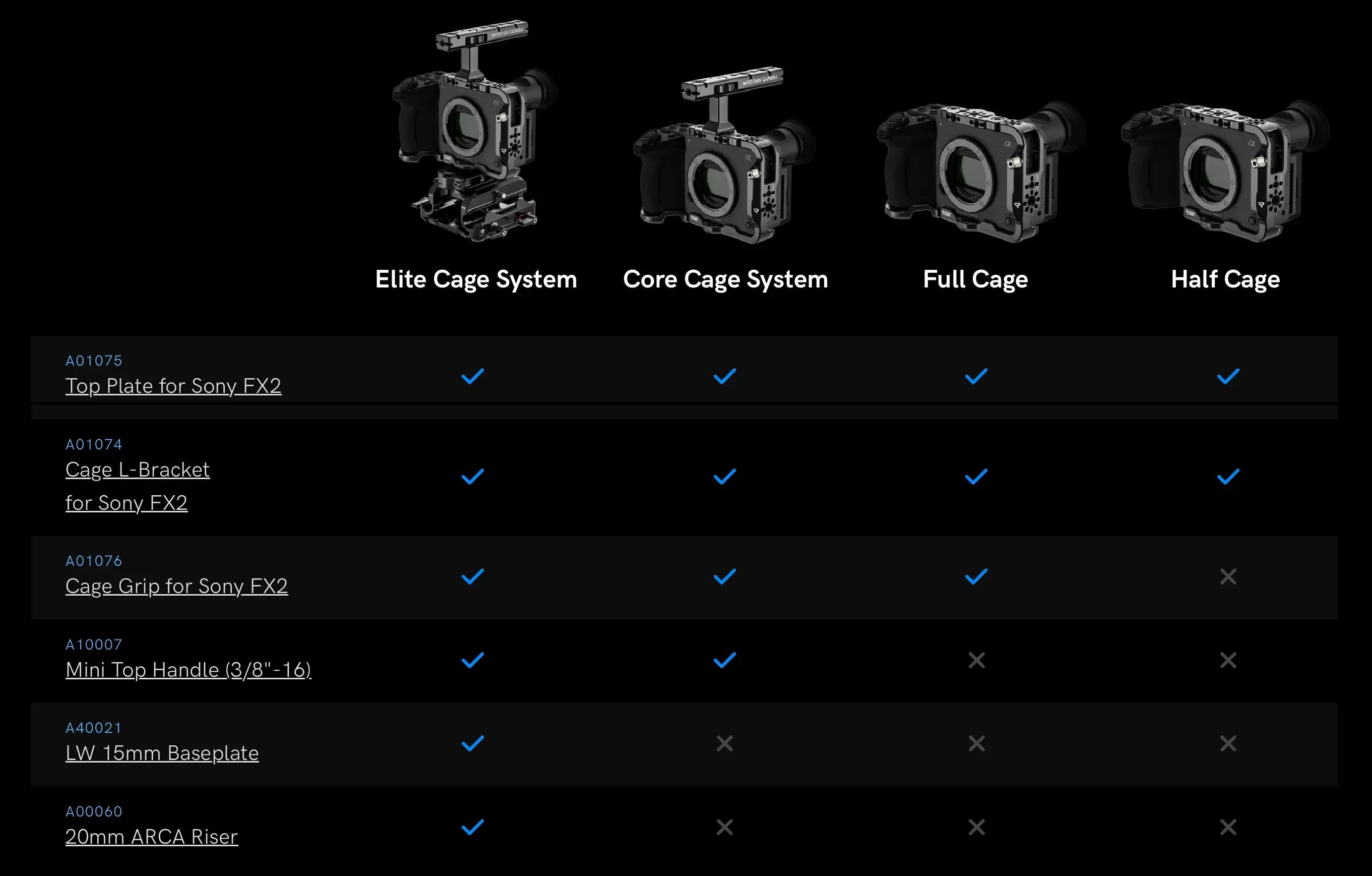

As you can see from the graphic below, this gives users a wide range of options.

Further specs:

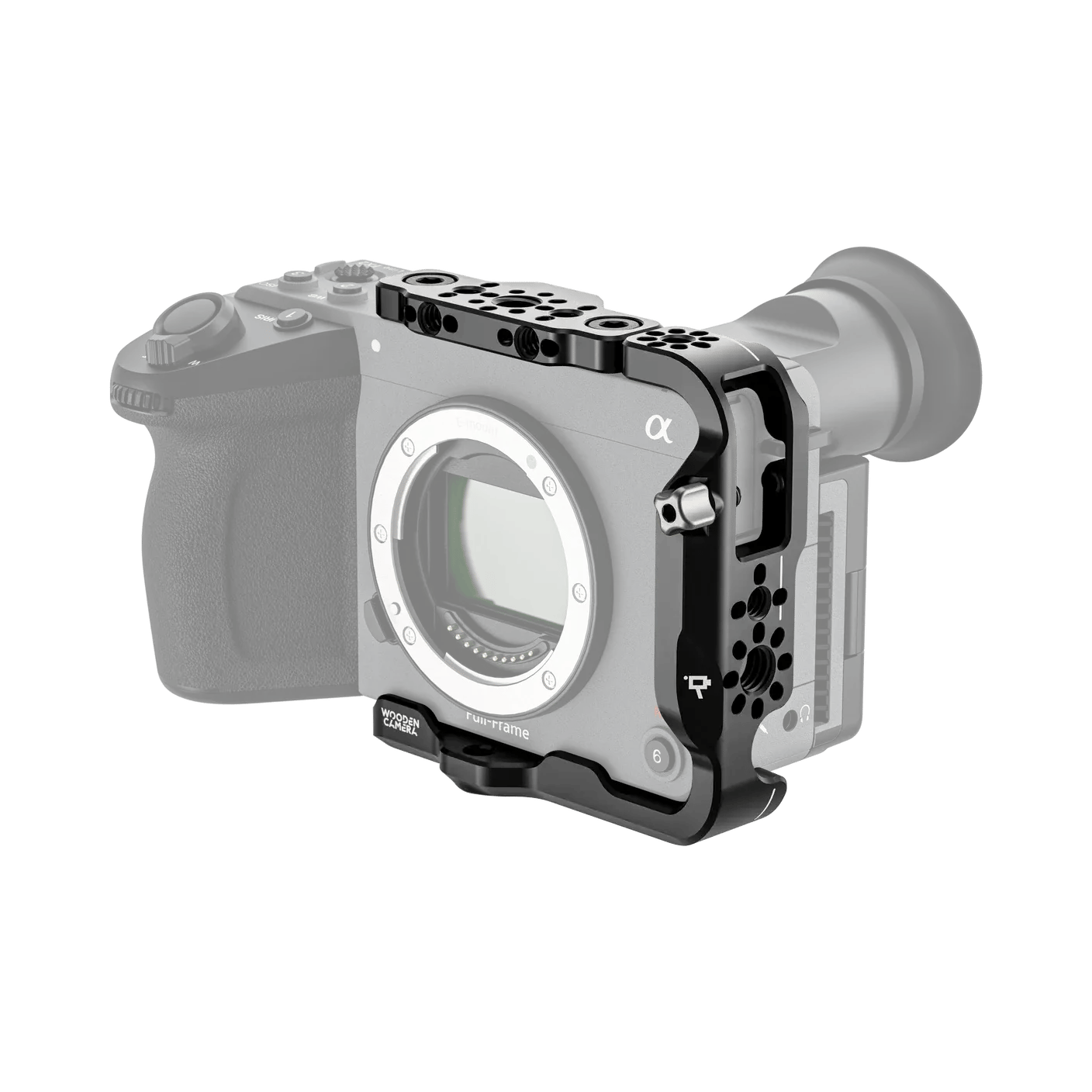

Half Cage

Featuring a streamlined Top Plate and Cage L-Bracket, this kit offers a solid starting point for mounting accessories while maintaining a compact form. Ideal for users who want a lightweight setup with the flexibility to expand into a full rig as their needs grow.

Weight: 118.8 g / 0.26 lbs

Size: 156 x 67 x 88 mm / 6.14 x 2.64 x 3.46 in

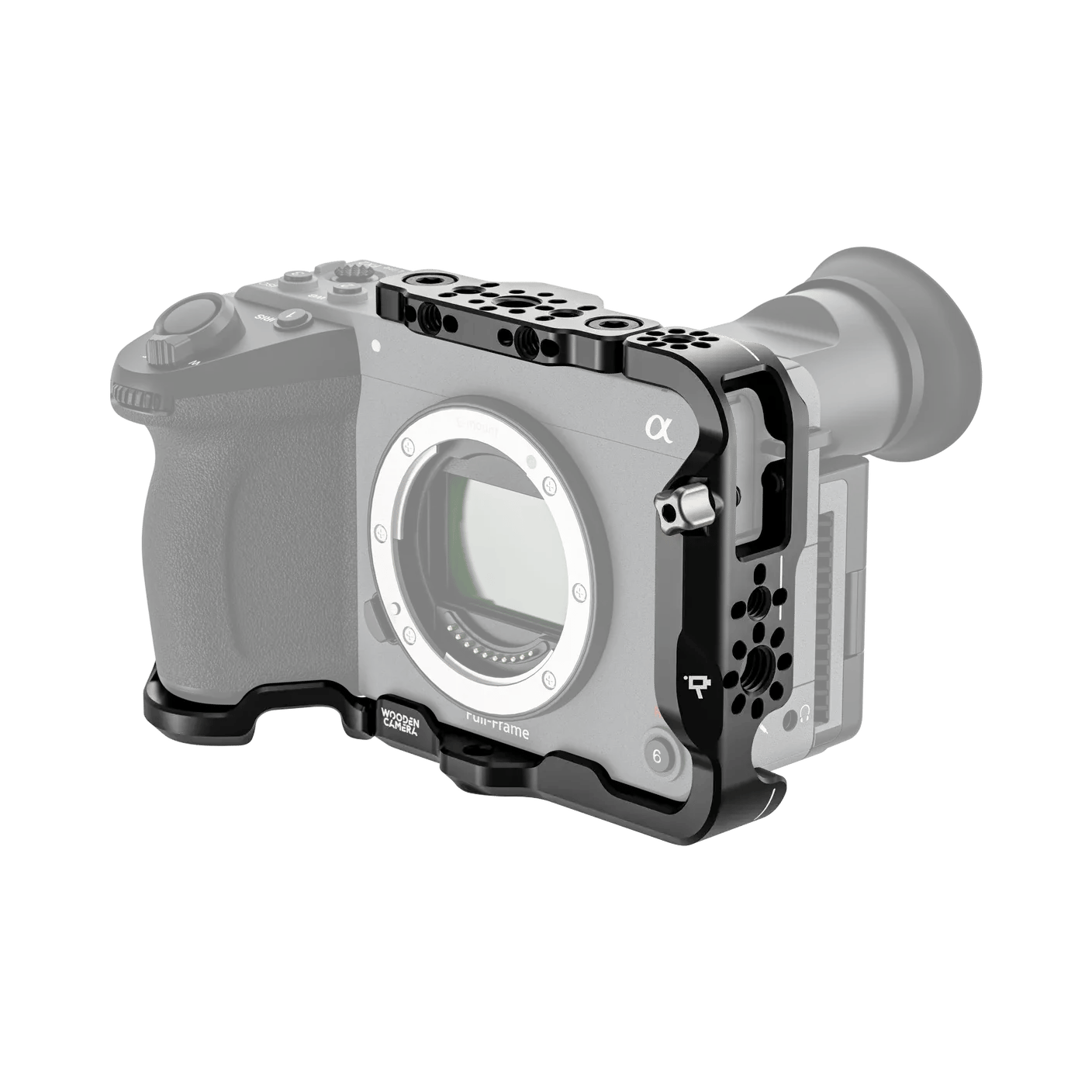

Full Cage

The Full Cage Kit for FX2 includes all three essential cage components, Top Plate, Cage Grip, and Cage L-Bracket

Weight: 178.7 g / 0.39 lbs

Size: 217 x 67 x 88 mm / 8.54 x 2.64 x 3.46 in

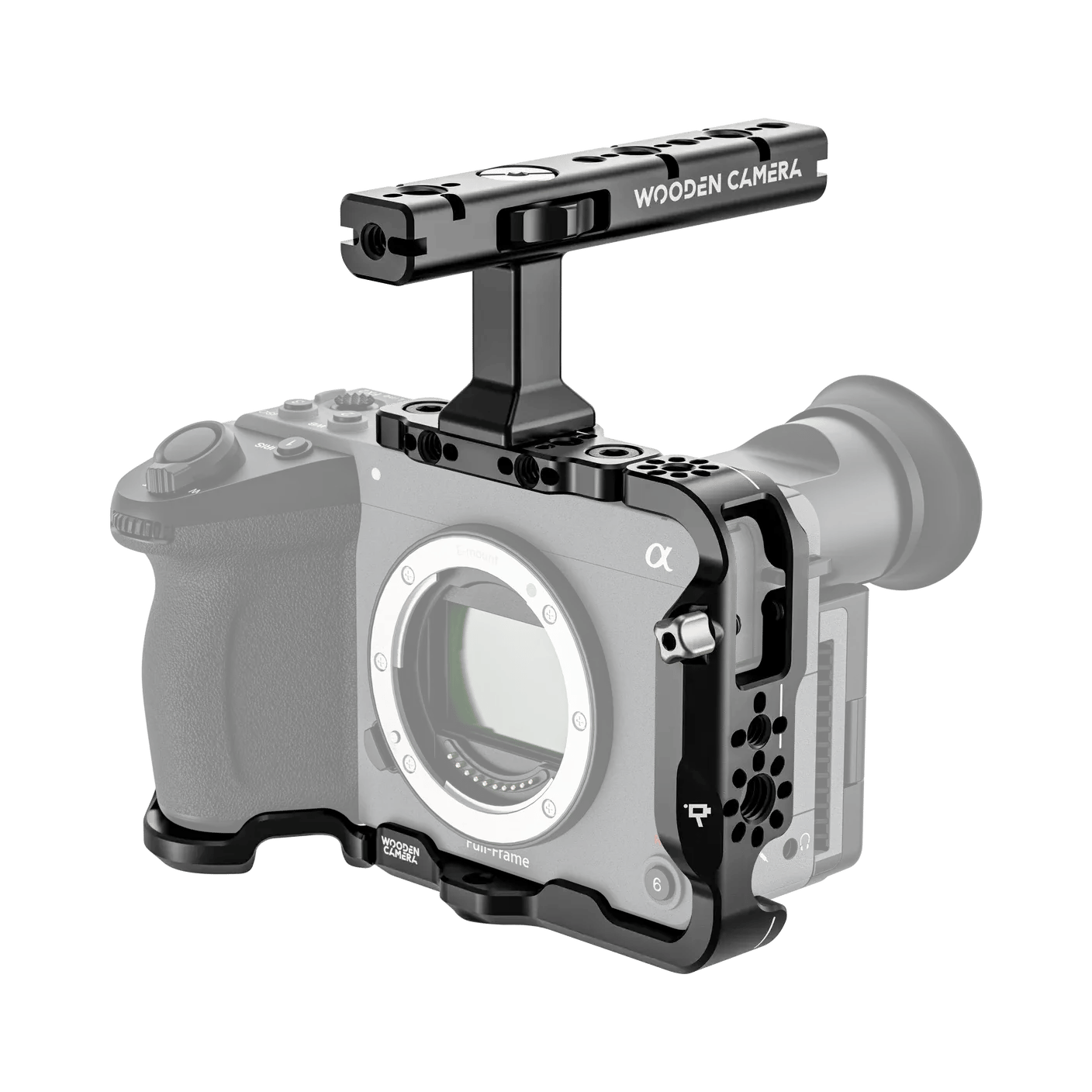

Core Cage

Makes a full cinema-style build possible via its Cage L-Bracket, Cage Grip, Top Plate, and a ⅜”-16 compatible handle. These components feature integrated cable management, allowing secure attachment of cables like the HDMI cable, directly to the camera body for a tidier and more reliable setup. The Mini Top Handle further enhances functionality with a lightweight grip and industry-standard mounting points for additional gear. An expandable rig solution that should adapt to evolving production needs.

Weight: 93.9 g / 0.65 lbs

Size: 228 x 155.5 x 108 mm / 8.98 x 6.12 x 4.25 in

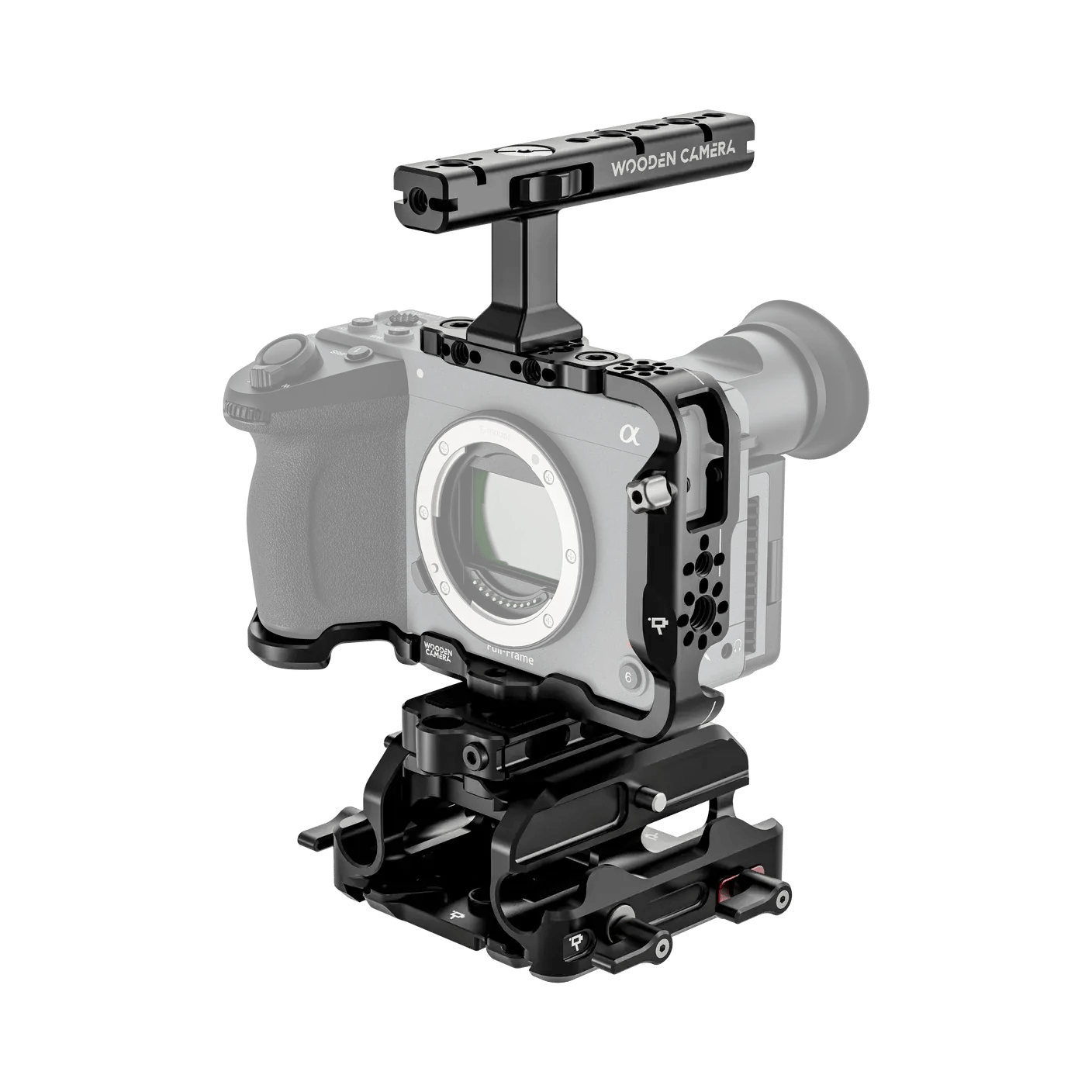

Elite Cage

Professional-grade modularity and versatility. This system includes the FX2 Cage and Top Plate, paired with the Cage Grip for enhanced handling and support. A 15mm Lightweight Baseplate and 20mm ARCA Riser provide flexible mounting options, while the 3” Ultra Handle Kit offers a secure, ergonomic grip with industry-standard mounting points for additional accessories. Together, these elements form a robust and expandable system that adapts seamlessly to evolving production demands.

Weight: 734.8 g /  1.62 lbs

Size: 101.2 x 104.8 x 93.2 mm / 3.98 x 4.13 x 3.67 in

Pricing and Availability

All kits are available now worldwide. Pricing is:

Half Cage: $174

Full Cage: $264

Core Cage: $369

Elite Cage: $844
