The 10K in the name of the new Bolt 6 XT 10K RX from Teradek alludes to feet, meaning that its newest wireless video receiver has an impressive range of up to 10,000 feet, or 3 kilometers.
The new Teredek Bolt 6 XT 10K RX extends the range of the company's Bolt 4K and Bolt 6 transmitters to an impressive 10,000 feet or 3000 metres. It promises zero delay even at that range over 5 or 6 GHz frequencies, and delivers visually lossless 4Kp60 4:2:2 video via two 12G‑SDI outputs.
An enhanced directional antenna promises superior RF performance, minimizing interference with robust internal shielding. Usefuly, an all‑in‑one enclosure eliminates the need for external antenna cables, resulting in a cleaner setup and faster deployment from case to C‑stand.
Teradek says that setup is further enhanced by using the dedicated Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

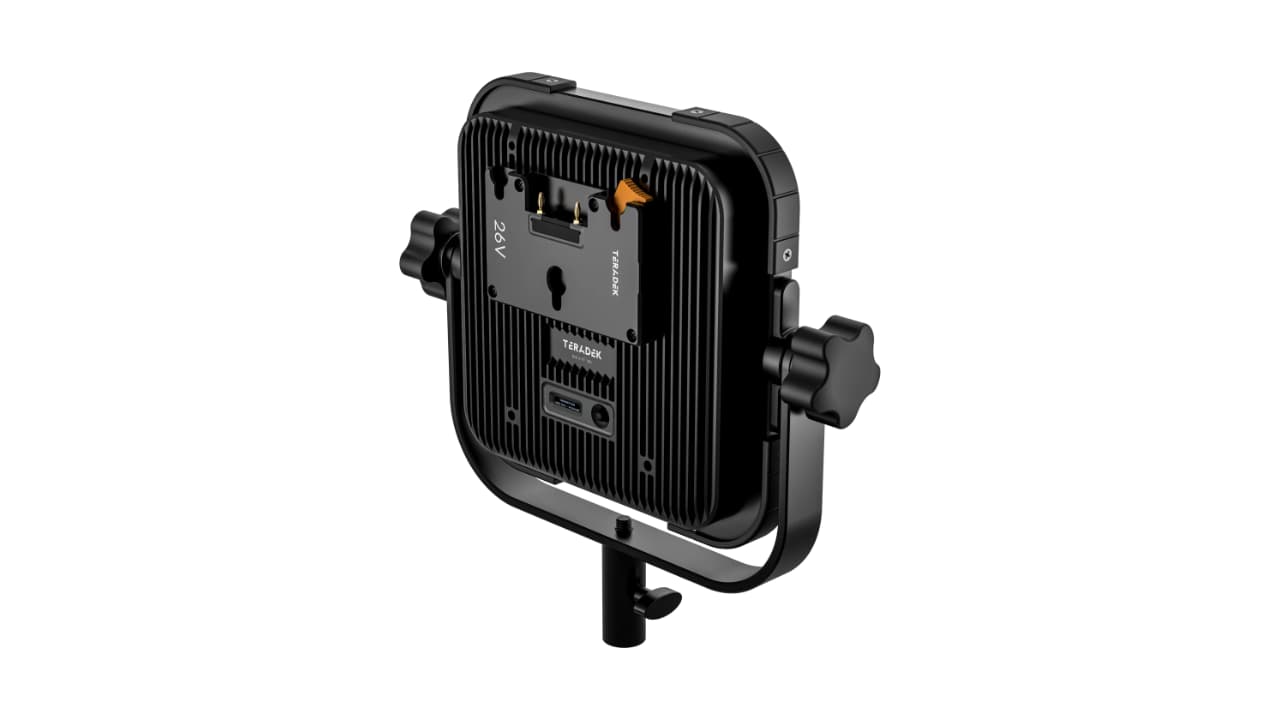

The Bolt 6 XT 10K RX comes in two versions, V-Mount or Gold-Mount. The Gold Mount version is compatible with both 14V and 26V batteries.
Pricing and Availability
The Bolt 6 XT 10K RX ships in September and is priced at $9990. The full package also includes a 10K Yoke Mount (sold as 11-0825), a 2pin Locking Connector to AC Power, and a USB-A to USB-C cable.
Key Specifications
|
Specification |
Details |
|
Video Outputs |
1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1); 1x HDMI 2.0 Type-A receptacle |
|
SDI Ancillary Data Support |
Supports timecode and start/stop flags from most camera manufacturers. Additional SDI metadata support for Arri and Sony cameras. |
|
Color Sampling |
SDI: YCbCr 4:2:2, 10-bit; HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit |
|
Delay Tx To Rx |
<0.001 sec (without format conversions) |
|
Output Video Processing |
Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs) |
|
Other Tools |
Spectrum Analyzer, Test Pattern Generator |
|
Supported Resolutions |
4Kp23.98/24/25/29.97/30/50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080psf23.98/24/25/29.97/30; 1080i50/59.94/60; 720p50/59.94/60 |
|
Video Compression |
Visually lossless |
|
Test Pattern Generator Support |
Yes |
|
Spectrum Analyzer |
Yes |
|
Video Format Conversion Support |
Yes |
|
Color Correction |
17x17x17 3D LUT (Supports 10-bit color), 1D LUT |
|
Audio Format |
48kHz 24-bit PCM |
|
Audio Output |
Embedded SDI/HDMI Audio Output (2 Channel) |
|
Dimensions |
13 x 2.2 x 12.7 inch (330 x 55 x 322 mm) |
|
Weight |
4.44 lbs. (2.01 kg) |
|
Construction |
Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection regulation-compliant PCB |
|
Configuration Interfaces |
OSD with Menu Joystick Navigation |
|
Switches |
On/Off Switch |
|
Mobile App |
Bolt App (iOS and Android) |
|
Desktop App |
Bolt Manager app (OSX and Windows) |
|
USB Interface Functionality |
Upgrade via USB-C, 5-pin locking connector CCU |
|
Bluetooth Compatibility |
Yes |
|
Antennas |
Integrated directional array panel antenna, 4.9-7.3GHz |
|
Wireless |
DFS Frequencies: 5.270 ~ 5.670 GHz; Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425 GHz |
|
Bluetooth |
2.4GHz |
|
RF Channel Selection |
Auto, Manual |
|
Encryption |
AES-256, RSA-1024 key exchange |
|
RF Power |
21 dBm EIRP (max power) |
|
Range |
Up to 10000 ft (1524 m) using broadcast mode with a Bolt 6 MAX TX; approx. 5000 ft with broadcast disabled |
|
Unicast Multicast |
750/1500/MAX: Connect one transmitter to up to 6 receivers; MAX (with Broadcast Mode enabled): unlimited receivers |
|
Noise Rejection |
Coexists with Wi-Fi and 5GHz cordless phones; operate up to 6 sets in the same location |
|
Power Input |
2-Pin locking connector 10-28 VDC |
|
Battery |
None, optional Gold or V-mount battery plate |
|
Nominal Power Consumption |
18 Watts |
|
Operating Temperature |
0~40 °C |
