NANLUX Evoke 150C - a Compact Fixture Built on the Nebula C8 Light Engine

The NANLUX Evoke 150C is a compact full-color LED spotlight powered by the Nebula C8 engine, offering 1,000K–20,000K CCT, IP66 durability, and professional control in a lightweight body.

The Evoke 150C is the second light to be released by NANLUX built around the new Nebula C8 Color Light Engine. Like its bigger Evoke 600C sibling, that new light engine enables it to offer an ultra-wide 1000K–20,000K range with what the company says are whole new levels of skin tone rendition. It too also features IP66 protection for reliability in extreme conditions.

Evoke 150C Key Features

• LED Full-color spotlight, equipped with Nebula C8 Light Engine

• Widest CCT range of 1,000K–20,000K with ±200 green/magenta adjustment

• Superior illuminance 22,230 lux@1m (5600K, with 45° reflector)

• Excellent color rendition with CRI/TLCI average 96/97, TM-30 Rf/Rg average 96/100

• Constructed with high-strength magnesium alloy and IP66-rated housing, all-in-one design weighs only 2.65kg/5.84 lb(with yoke)

• Intuitive on-board operation featuring 2.0-inch display, two knobs, and three buttons

• Wired and wireless control methods: on-board, wired controller, Nanlink App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, remote controller

• 15 built-in special effects with customizable parameters in each effect

• Five fan modes: Smart, Full Speed, Low Speed, Pause and Off

• Compatible with FE mount and FM mount accessory ecosystem

• Supports firmware update

Performance

As you would expect, the two fixtures share lots of commonalities, but there are a few differences that have been baked in to make the Evoke 150C smaller, lighter and more portable.

It has the same light engine specs (3% higher than Rec. 2020 in the visible color gamut and has 92% coverage of the Rec. 2020 color space) and other stats. CRI is 96, with TLCI 97 and TM-30 scores of Rf 96 and Rg 100. But output is lower as you would expect at 150 W rather than 600, delivering 22,230 lux at 1 m (5600K, with 45° reflector) and 10,200 lux at 1 m (green, with 45° reflector).

It is, of course, also smaller. It weighs 2.65 kg / 5.84 lb (lamp head with yoke) and measures just 209×147×127 mm / 8.2×5.8×5.0 inches. It's quieter too, the smart mode managing to reduce noise to only 24 dB(A).

Power & Control

The fixture combines the lamp head, control unit, and power supply into a single compact body. Power options include an integrated AC/DC input supporting direct connection to wall outlets (AC 100–240V) or batteries (DC 14.4–28V), while the USB-C port supports PD3.0 input (12–28V, 60W min) for use with adapters or power banks.

A V-mount battery holder allows attaching a V-mount battery to the yoke.

A dedicated port enables connectivity with control devices, signal routing, and motorized accessories, offering the same advanced control capabilities as the wider Evoke series. Control is via a 2.0-inch display, two adjustment knobs, and three mode buttons. It also supports versatile control options including the Nanlink App 2.0, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, remote controller, or wired controller. A built-in NFC tag allows it to instantly pair with an NFC-enabled phone or tablet running the App.

Accessories & Mounting

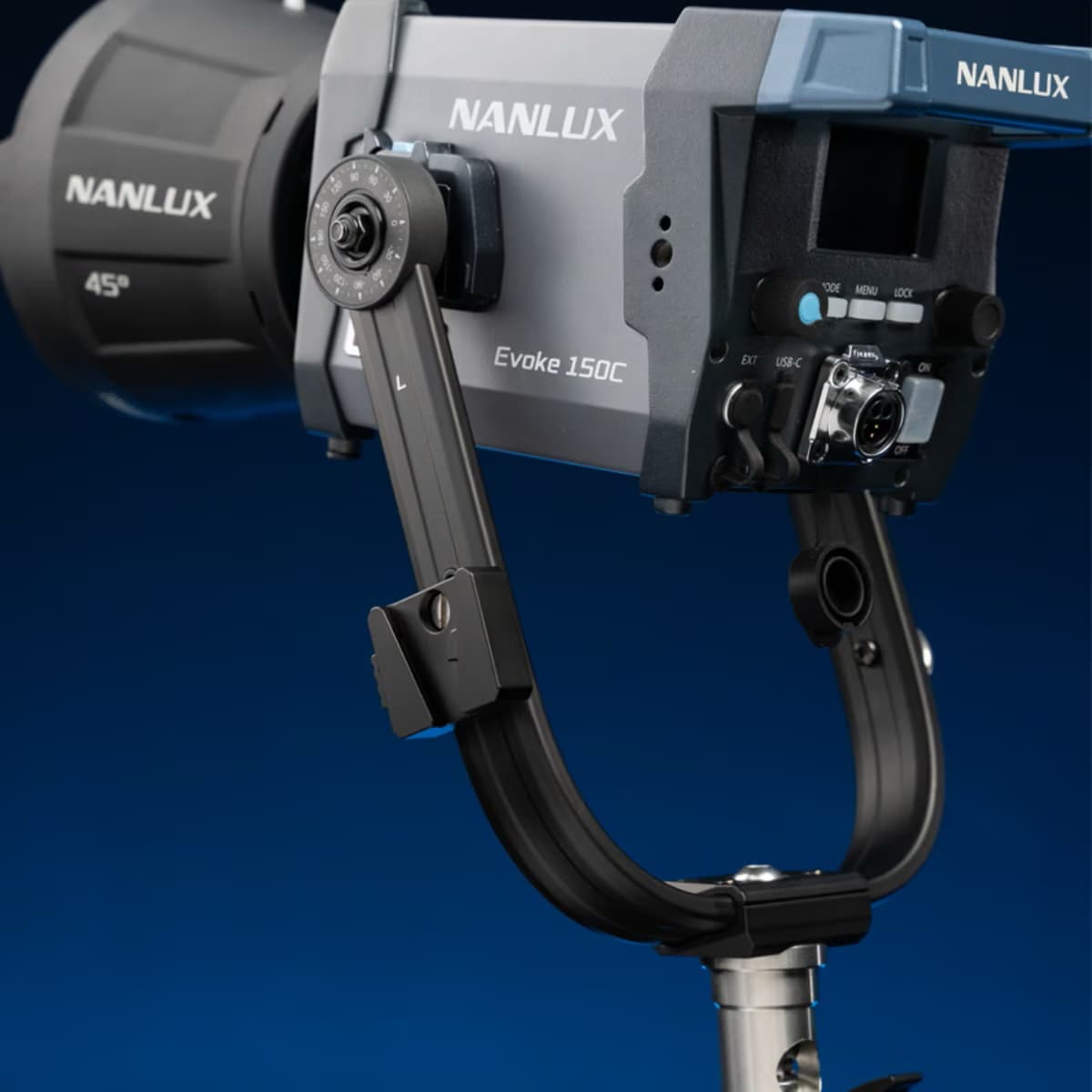

For fixed mounting, the kit includes a 5/8" Baby Pin with Quick Release Plate (AS-BP-QRS), which attaches directly to the fixture’s quick-release base, enabling fast and versatile setup.

The light's FE mount incorporates the NANLUX PosiTight system that ensures a secure dual-safety connection between fixture and accessory. The side of the Evoke 150C also has a new tilt-locking mechanism with angle indicator to simplify repeat alignment. An offset design expands the tilt range for large modifiers.

There are three 1/4"-20 anti-twist threads on both sides and the top, providing flexible mounting for controllers, adapters, or added safety when rigging.

Price and Availability

The Evoke 150C costs $1080 and, like the Evoke 600C, will be 'available soon'.
